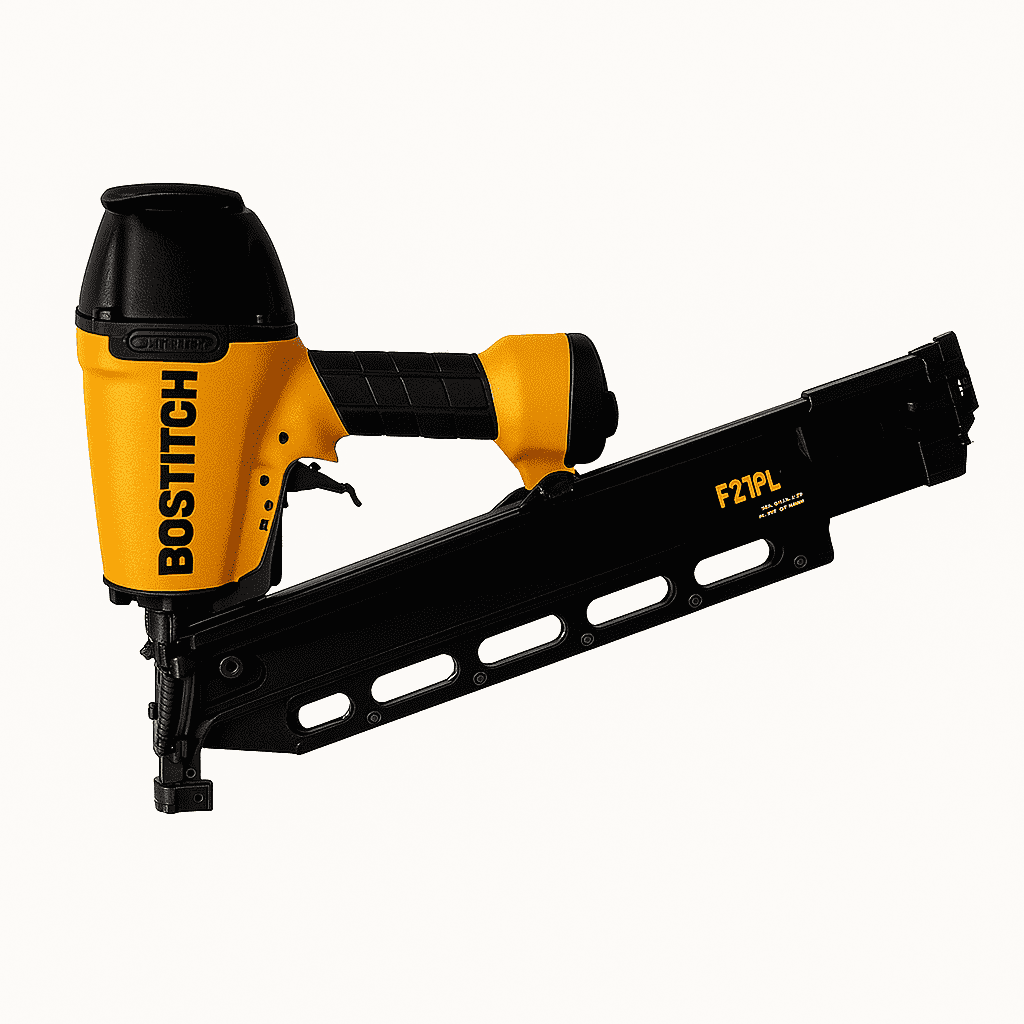

Bostitch F21PL-E 21 degree 2in1 RH & MCN Stick Nailer-ST + Case

Product Description

Bostitch F21PL-E 21 degree 2in1 RH & MCN Stick Nailer-ST plus Case

Engineered for power and versatility, this dual-purpose framing nailer delivers enhanced performance with upgraded features. It converts in seconds from a standard framing nailer to a positive placement tool, making it ideal for roof trusses, joist hangers, and metal connecting plates. Built for durability, it drives plastic collated roundhead nails with bright and G13 galvanisation (50 microns) for long-lasting protection. Additionally, metal connector nails are galvanised to 15 microns for reliable fastening.

Specifications:

Fastener Diameter: 2.5 - 3.3 mm / 4.1 mm
Fastener Length: 45 - 90 mm / 38 - 65 mm

Features & Benefits:

Dual-purpose design—seamlessly switches between standard framing and positive placement.
Ideal for—roof trusses, joist hangers, and metal connector applications.
High-performance fastening—supports plastic collated roundhead nails.
Durable galvanisation—G13 coating (50 microns) for roundhead nails, 15 microns for metal connectors.
Extended warranty—covered by the Bostitch 7-year warranty for long-term reliability.

PL Series Fasteners:
Power type	Pneumatic
Weight	3.70 kg
Width	133 mm
Length	517 mm
Height	355 mm
Magazine capacity (max)	50
Diameter (mm)	2.5 (min)	3.3 (max)
Length (mm)	45 (min)	90 (max)
Head (mm)	6.7 (min)	8 (max)
Collation type	plastic
Collation angle	21
MCN Series Fasteners:
Diameter (mm)	4.1 (min)	4.1 (max)
Length (mm)	38 (min)	65 (max)
Head (mm)	8 (min)	8 (max)
Collation type	plastic
Collation angle	21

Operating pressure		4.80 - 8.30 BAR
		70.00 - 120.00 PSI
Air Consumption Ltr.per shot @ 5.6 bar		2.47
Air fitting thread type		1/4 BSP
Noise	LPA 1sd	96.70
	LWA 1sd	100.10
	LPA 1s, 1m	87.10
Vibration / Uncertainty		2.47 / N/A m/s²

PL Series Fasteners
SKU	Diameter	Length	Profile	Finish	Collation angle	Qty per box
RH2545G50	2.5	45	Plain	G50	21°	2000
RH2550G50	2.5	50	Plain	G50	21°	2000
RH2555G50	2.5	55	Plain	G50	21°	2000
RH25R45G50	2.5	45	Ring	G50	21°	2000
RH25R50G50	2.5	50	Ring	G50	21°	2000
RH25R55G50	2.5	55	Ring	G50	21°	2000
RH2850	2.8	50	Plain	Bright	21°	2000
RH2850G50	2.8	50	Plain	G50	21°	2000
RH2855	2.8	55	Plain	Bright	21°	2000
RH2860	2.8	60	Plain	Bright	21°	2000
RH2860G50	2.8	60	Plain	G50	21°	2000
RH2865	2.8	65	Plain	Bright	21°	2000
RH2865G50	2.8	65	Plain	G50	21°	2000
RH2870	2.8	70	Plain	Bright	21°	2000
RH2870G50	2.8	70	Plain	G50	21°	2000
RH2875	2.8	75	Plain	Bright	21°	2000
RH2875G50	2.8	75	Plain	G50	21°	2000
RH28R50	2.8	50	Ring	Bright	21°	2000
RH28R50BI	2.8	50	Ring	Bi	21°	2000
RH28R50G50	2.8	50	Ring	G50	21°	2000
RH28R55	2.8	55	Ring	Bright	21°	2000
RH28R55BI	2.8	55	Ring	Bi	21°	2000
RH28R60	2.8	60	Ring	Bright	21°	2000
RH28R60BI	2.8	60	Ring	Bi	21°	2000
RH28R65	2.8	65	Ring	Bright	21°	2000
RH28R65BI	2.8	65	Ring	Bi	21°	2000
RH28R65G50	2.8	65	Ring	G50	21°	2000
RH28R70	2.8	70	Ring	Bright	21°	2000
RH28R70BI	2.8	70	Ring	Bi	21°	2000
RH28R70G50	2.8	70	Ring	G50	21°	2000
RH28R75	2.8	75	Ring	Bright	21°	2000
RH28R75G50	2.8	75	Ring	G50	21°	2000
RH3180G50	3.1	80	Plain	G50	21°	2000
RH3185	3.1	85	Plain	Bright	21°	2000
RH3185G50	3.1	85	Plain	G50	21°	2000
RH3190	3.1	90	Plain	Bright	21°	2000
RH3190G50	3.1	90	Plain	G50	21°	2000
RH31R80G50	3.1	80	Ring	G50	21°	2000
RH31R85	3.1	85	Ring	Bright	21°	2000
RH31R85BI	3.1	85	Ring	Bi	21°	2000
RH31R85G50	3.1	85	Ring	G50	21°	2000
RH31R90	3.1	90	Ring	Bright	21°	2000
RH31R90BI	3.1	90	Ring	Bi	21°	2000
RH31R90G50	3.1	90	Ring	G50	21°	2000
