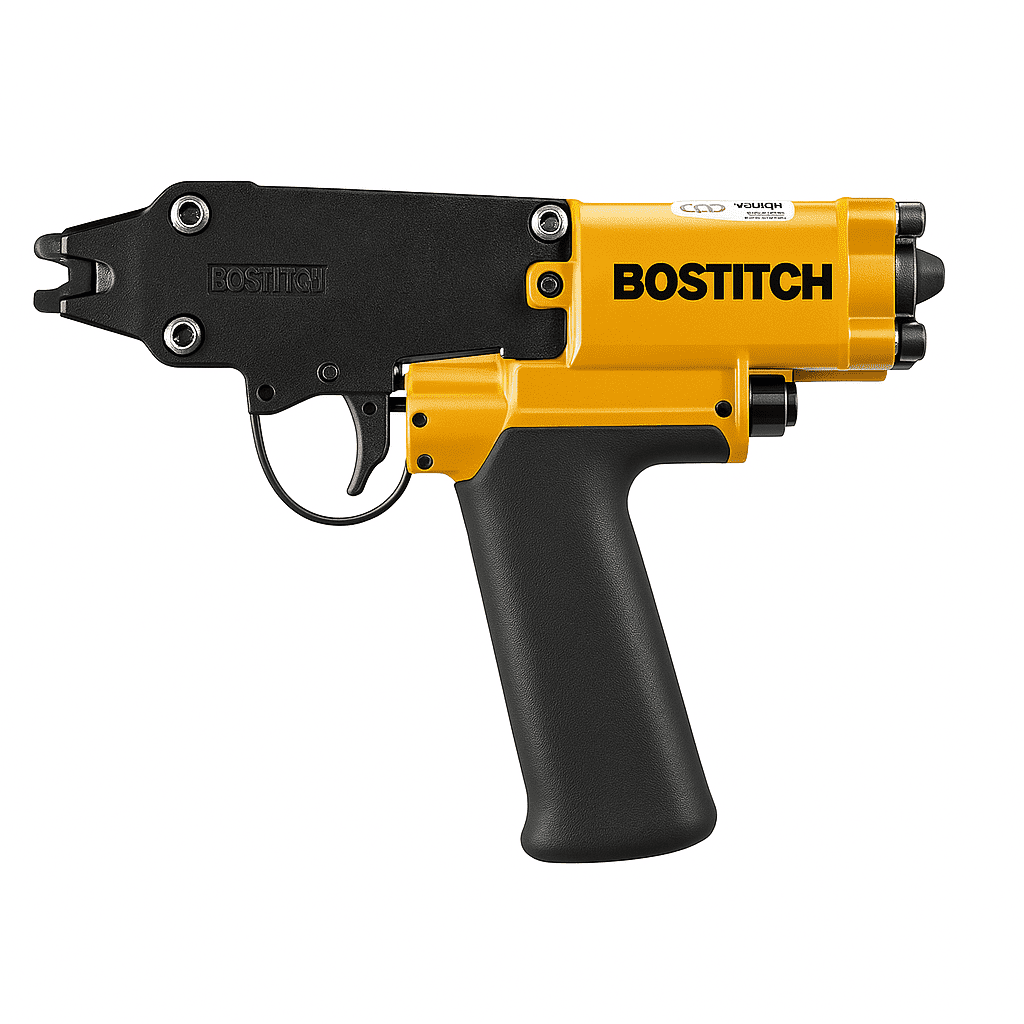

Bostitch SC760 Pneumatic Hog Ring Tool – Heavy-Duty Performance for Fast, Reliable Fastening

Boost productivity with the Bostitch SC760 C-RINGER-516 Hog Ring Tool, engineered for high-volume applications that demand speed, strength, and reliability. This pneumatic hog ringer is perfect for fencing, bag closure, car seating, mattress manufacturing, and other industrial fastening jobs.

🔧 Key Benefits:

• Ergonomic & Durable: Lightweight aluminium housing with a rubber comfort grip ensures operator comfort during extended use.
• Precision Fastening: Accepts 516 Series C-rings with 1.6mm wire diameter, 12.5mm open size, and 3.2–5.6mm closed size.
• High Capacity & Easy Handling: Holds up to 140 hog rings for fewer reloads and faster work flow.
• Efficient Air Return System: Improves tool performance with reduced cycle times.

📊 Technical Specs:

• Tool Type: Pneumatic Hog Ring Tool
• Operating Pressure: 5.86 – 7.93 bar (85 – 115 PSI)
• Air Consumption: 3.3 L/shot @ 5.6 bar
• Fasteners: Bostitch 516 Series Rings (1.6 mm dia.)
• Weight: 2.90 kg
• Dimensions: 269.2 mm (L) × 96.5 mm (W) × 188 mm (H)
• Air Inlet: 1/4" BSP
• Noise: LPA 1sd: 86.38 dB LWA 1sd: 91.47 dB
• Vibration: < 2.5 m/s²

🎯 Ideal Applications:

• Chain link fencing
• Automotive seat and upholstery
• Bedding and mattress assembly
• Bag and net closures
• Wire cage construction
